Description

Xiner IGBT adopts international leading trench structure + field cut-off technology (Trench + FS) to reasonably optimize device current density The best saturation turn-on voltage drop (Vce(sat)) and turn-off loss (Eoff) balance are obtained. Perfect for electromagnetic heating, motor drive, industrial power supply and other applications. The core IGBT breakdown voltage ensures sufficient redundancy, high electrical parameter consistency and robust reliability. It also has a high short-circuit current capability.

Features and Benefits:

  • Low saturation conduction voltage drop;
  • Low switching loss;
  • High short circuit current tolerance;
  • High parameter consistency;
  • High input impedance;
  • Positive temperature coefficient, suitable for parallel use.

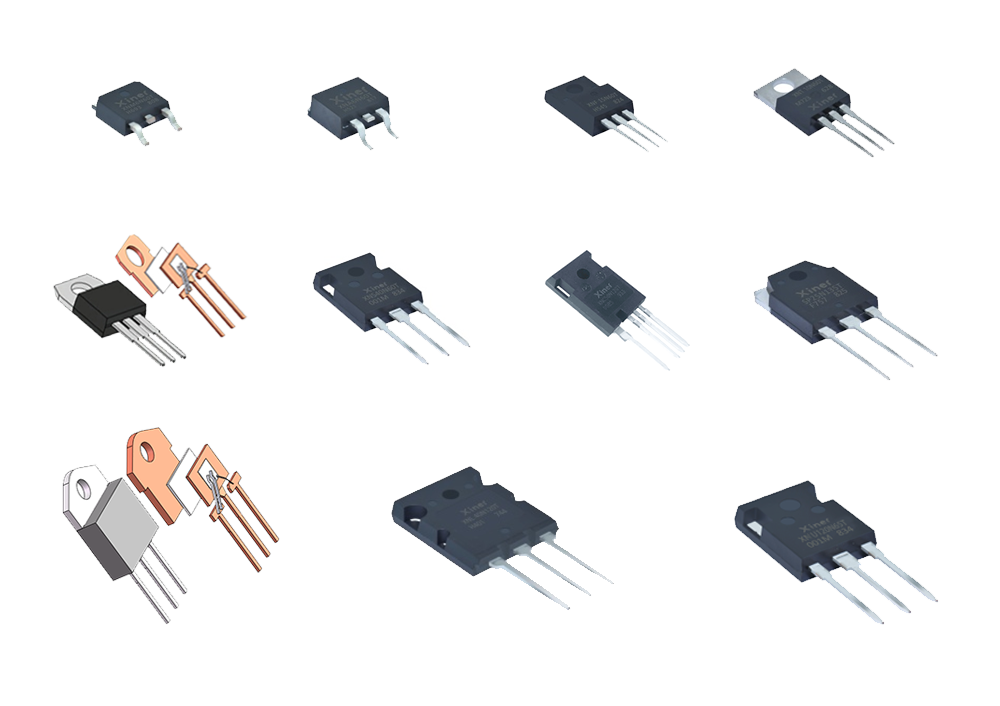

Discretes
Parameters
Product Name Package Build-in Diode Vce
(max)
@25℃ 		IC
(max)
@100℃ 		IF
(max)
@100℃ 		Short-Circuit
(uS) 		Tj
(℃) 		VGE
(th)(typ) 		VCE
(sat)(typ)
(Typ) 		VF
(Typ)
XNM4N60T TO-252 Yes 600 4 4 5 -40~+ 175 6.0  2.40  1.40
XNM6N60T TO-252 Yes 600 6 6 5 -40~+ 175 6.0  1.70  1.45
XNA6N60T TO-263 Yes 600 6 6 5 -40~+ 175 6.0  1.70  1.45
XNF6N60T TO-220F Yes 600 6 6 5 -40~+ 175 6.0  1.70  1.45
XNA10N60T TO-263 Yes 600 10 10 5 -40~+ 175 6.0  1.85  1.70
XNA15N60T TO-263 Yes 600 15 15 5 -40~+ 175 5.8  1.70  1.50
XNF15N60T TO-220F Yes 600 15 15 5 -40~+ 175 5.8  1.70  1.50
XNT15N60T TO-220 Yes 600 15 15 5 -40~+ 175 5.8  1.70  1.50
XNT15N60TI IITO-220 Yes 600 15 15 5 -40~+ 175 5.8  1.70  1.50
XNA20N60T TO-263 Yes 600 20 20 10 -40~+ 175 5.4  1.65  1.50
XNA20N65T TO-263 Yes 650 20 20 10 -40~+ 175 5.7  1.55  1.50
XNF20N60T TO-220F Yes 600 20 20 10 -40~+ 175 5.4  1.65  1.50
XNT20N60T TO-220 Yes 600 20 20 10 -40~+ 175 5.4  1.65  1.50
XNS20N60T TO-247-3L Yes 600 20 20 10 -40~+ 175 5.4  1.65  1.50
XNT24N60TI IITO-220 Yes 600 24 24 10 -40~+ 175 5.8  1.85  1.60
XNA30N65T TO-263 Yes 650 30 30 5 -40~+ 175 5.4  1.75  1.85
XNF30N65T TO-220F Yes 650 30 30 5 -40~+ 175 5.4  1.75  1.85
XNT30N65T TO-220 Yes 650 30 30 5 -40~+ 175 5.4  1.75  1.85
XNS30N65T TO-247-3L Yes 650 30 30 5 -40~+ 175 5.4  1.75  1.85
XNS40N60T TO-247-3L Yes 600 40 40 10 -40~+ 175 5.8  1.80  1.60
XNS40N65TH3 TO-247-3L Yes 650 40 20 _ -40~+ 175 4.1  1.60  1.45
XNS40N65TFH3 TO-247-3L Yes 650 40 5 _ -40~+ 175 5.0  1.85  1.60
XNS50N65TL3 TO-247-3L Yes 650 50 50 5 -40~+ 175 5.2  1.70  1.60
XNS50A65TL3 TO-247-3L Yes 650 50 50 5 -40~+ 175 5.2  1.70  1.60
XNS50N65TF3 TO-247-3L Yes 650 50 50 _ -40~+ 175 4.5  1.60  1.70
XNS50N65TH3 TO-247-3L Yes 650 50 20 _ -40~+ 175 4.3  1.50  1.45
XNS50N65TB3 TO-247-3L NO 650 50 _ _ -40~+ 175 4.3  1.50  _
XNS50N65TFHI3 TO-247-3L Yes 650 50 5 _ -40~+ 175 4.5  1.65  1.65
XNS75N65TF3 TO-247-3L Yes 650 75 75 _ -40~+ 175 4.3  1.35  1.50
XNS75N65TL3 TO-247-3L Yes 650 75 75 _ -40~+ 175 5.0  1.15  1.60
XNC75N65TL3 TO-247-4L Yes 650 75 75 _ -40~+ 175 5.0  1.15  1.60
XNS80N65TSH3 TO-247-3L Yes 650 80 80 _ -40~+ 175 4.5  1.70  1.50
XNS80N65TB3 TO-247-3L NO 650 80 _ _ -40~+ 175 4.3  1.35  _
XNU120A65TL3 TO-247Plus-3L Yes 650 120 120 5 -40~+ 175 5.2  1.60  1.80
XNS30N110TR3 TO-247-3L Yes 1100 30 20 _ -40~+ 175 6.1  1.60  2.50
XNS15N120T TO-247-3L Yes 1200 15 15 10 -40~+ 175 5.5  2.00  2.00
XNB15N120T TO-263-6L Yes 1200 15 15 10 -40~+ 175 5.5  2.00  2.00
XNT15N120T TO-220AB Yes 1200 15 15 10 -40~+ 175 6.2  2.50  2.30
XNP15N120T TO-3P Yes 1200 15 15 10 -40~+ 175 5.8  2.10  2.00
XNS25N120T TO-247-3L Yes 1200 25 25 10 -40~+ 175 6.2  1.75  2.10
SP25N135T TO-3P Yes 1350 25 20 _ -40~+ 175 5.8  1.85  2.30
XNS40N120T TO-247-3L Yes 1200 40 40 10 -40~+ 175 6.0  1.70  1.65
XNS40N120TH TO-247-3L Yes 1200 40 20 10 -40~+ 175 5.8  2.00  2.10
XNL40N120T TO-264 Yes 1200 40 20 10 -40~+ 175 5.8  1.70  2.10
XNS50N120T TO-247-3L Yes 1200 50 50 10 -40~+ 175 5.8  1.70  2.10
XNC50N120T TO-247-4L Yes 1200 50 50 10 -40~+ 175 5.8  1.70  2.10
XNU75N120TF2 TO-247Plus-3L Yes 1200 75 75 _ -40~+ 175 5.3  1.85  2.30
XNS40N180TR TO-247-3L Yes 1800 40 40 _ -40~+ 175 5.2 2.10 1.70
