Industrial fan solution
Xiner Xiner Loading... 2018-12-03

Program Highlights:

  • High efficiency and low noise
  • Complete protection
  • Easy to develop, short development cycle

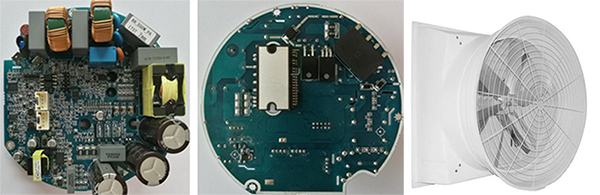

Industrial Fan Solutions

Key:

IPM XNS10S82F6 1PCS
IPM XNS10S72F6 1PCS
IPM XNS15S72F6 1PCS
IPM XNS15S92F6 1PCS
IPM XNS24S92F6 1PCS

Performance metrics:

Parameters Metrics
Input voltage 220V AC±20%
Input frequency 50Hz±10%
Maximum output power 1500W
Modulation frequency 15KHz
Maximum speed 3000 RPM
control method FOC
Current sampling method Three resistor
Protective function Overcurrent, overvoltage, undervoltage, overtemperature, stall protection
Length, width and height 140mm*130mm*50mm
