IPM-based pump solution
Xiner Xiner Loading... 2018-12-03

Applications: Dishwasher

Program Highlights:

  • High efficiency and low noise
  • Complete protection

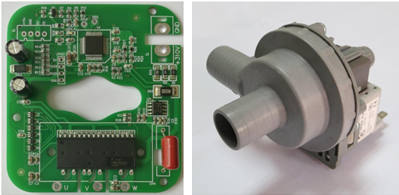

IPM-based pump solution

Key:

IPM XNM50550AT (ATS) 1PCS

Performance metrics:

Parameters Metrics
Input voltage 220V AC ±20%
Input frequency 50Hz±10%
Maximum output power 120W
Modulation frequency 16KHz
Maximum speed 3200 RPM
control method FOC
Current sampling method Single resistance
Protective function Overcurrent, overvoltage, undervoltage, overtemperature, stall protection
Length, width and height 70mm*65mm*15mm
