Air purifier solution
Xiner Xiner Loading... 2018-12-03

Program Highlights:

  • High efficiency and low noise
  • Complete protection
  • Easy to develop, short development cycle

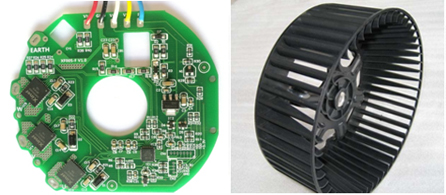

air purifier

Key:

IPM XNM50550AT (ATS) 1PCS
IPM XNS50660AT (ATS) 1PCS

Performance metrics:

Parameters Metrics
Input voltage 220V AC±20%
Input frequency 50Hz±10%
Maximum output power 100W
Modulation frequency 18KHz
Maximum speed 2000 RPM
control method FOC
Current sampling method Three resistor
Protective function Overcurrent, overvoltage, undervoltage, overtemperature, stall protection
Length, width and height 82mm*72mm*5mm
