新品发布
New Product Release
Xiner Semiconductor Technology has introduced a new 1200V800A C2 module, utilizing self-developed IGBT and emitter control technology FRD based on the MPT process platform, with a package compatible with 62mm.
This product boasts ultra-low saturation voltage drop, extremely low switching loss, and an integrated full current positive temperature coefficient continuous current diode to enable multi-parallel use. It is primarily utilized in photovoltaic, energy storage, motor controller and other related fields.
芯能半导体新推出一款1200V800A C2模块，该模块采用自主研发的基于MPT工艺平台的IGBT和发射极控制技术的FRD，封装兼容62mm。
此产品具有超低的饱和压降、超低开关损耗的特点，内置全电流正温度系数续流二极管，利于多并联使用，主要应用在光伏、储能、电机控制器等领域。
Related products/相关产品：

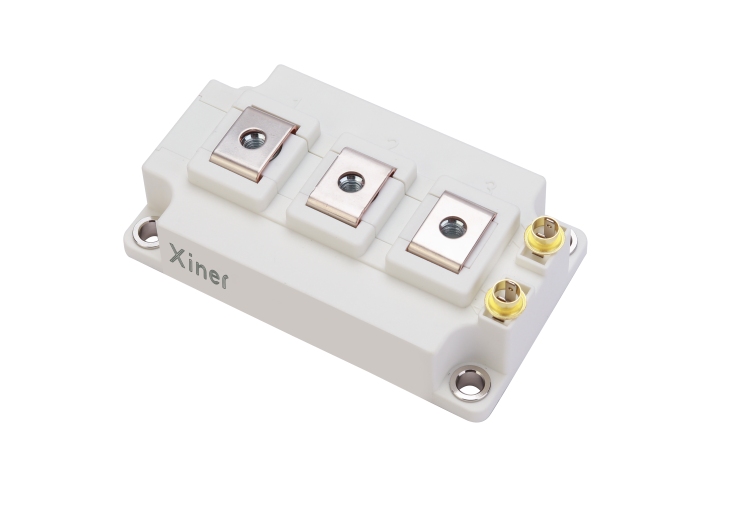

XNG800BL12C2E-J11 / XNG800BL12C2E-J11
1200V C2 Half-bridge power module /1200V C2半桥功率模块

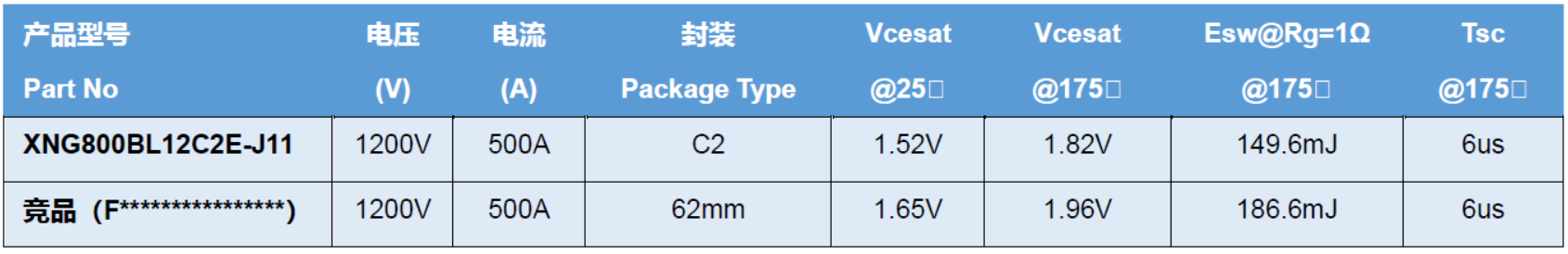

Product Characteristics/产品特性
Product Features/产品特点
1、Self-built automated production line/ 自建的自动化生产专线
2、C2 package (compatible with62mm) /C2封装（兼容62mm）
3、1200V IGBT(MPT process platform) /1200V IGBT（MPT工艺平台）
4、1200V positive temperature coefficient FRD, conducive to multiple parallel use / 1200V正温度系数FRD，利于多并联使用
5、Optimized for low inductance design / 针对低电感设计进行了优化
6、TVjop=175°C
Application Value/应用价值
1、Lower voltage overshoot/更低的电压过冲
2、Low on-off loss/低导通损耗
3、Low switching loss/低开关损耗
4、Easy to parallel, the current can be extended/ 易于并联，可扩展电流
5、Reduce system costs/降低系统成本
Application Area/应用领域
Topological Structure/拓扑结构
Test Waveform/测试波形

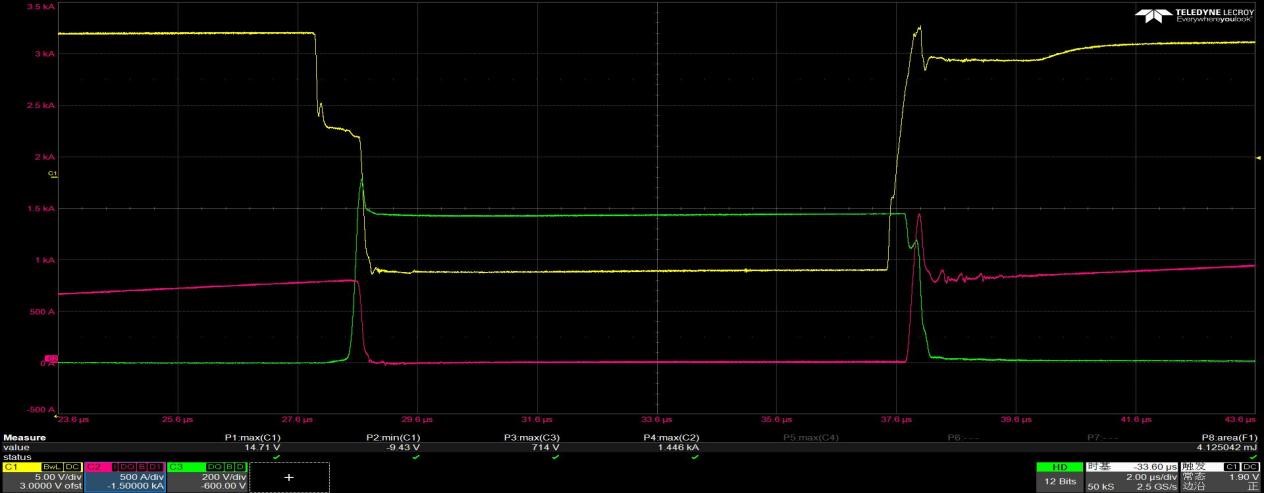

1x current switch waveform @175℃
1倍电流开关波形@175℃

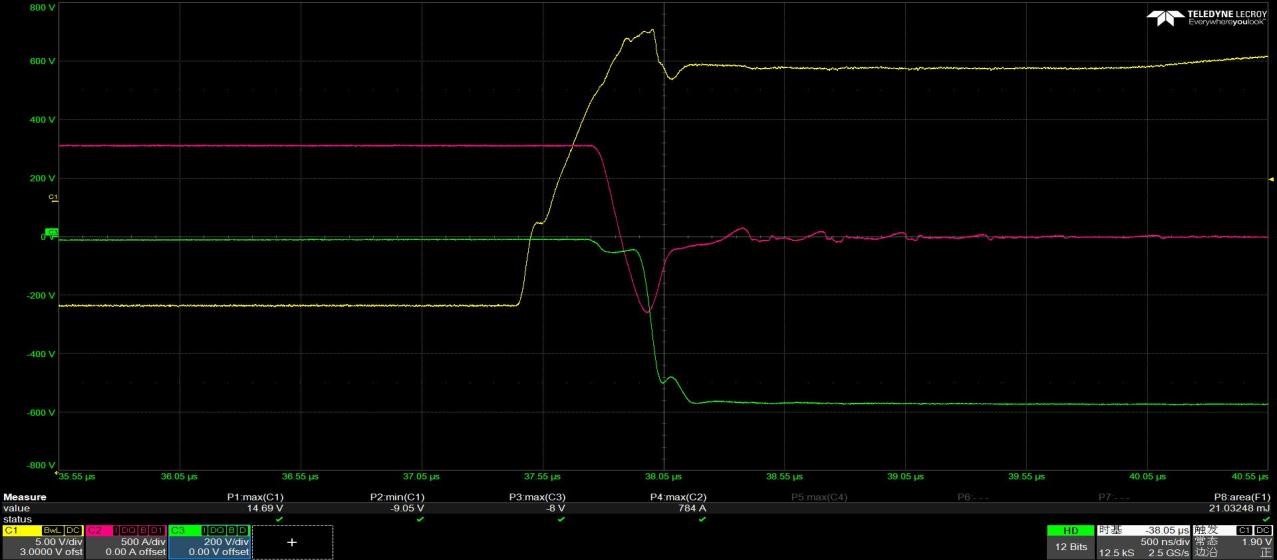

1x current reverse recovery waveform @175℃
1倍电流反向恢复波形@175℃

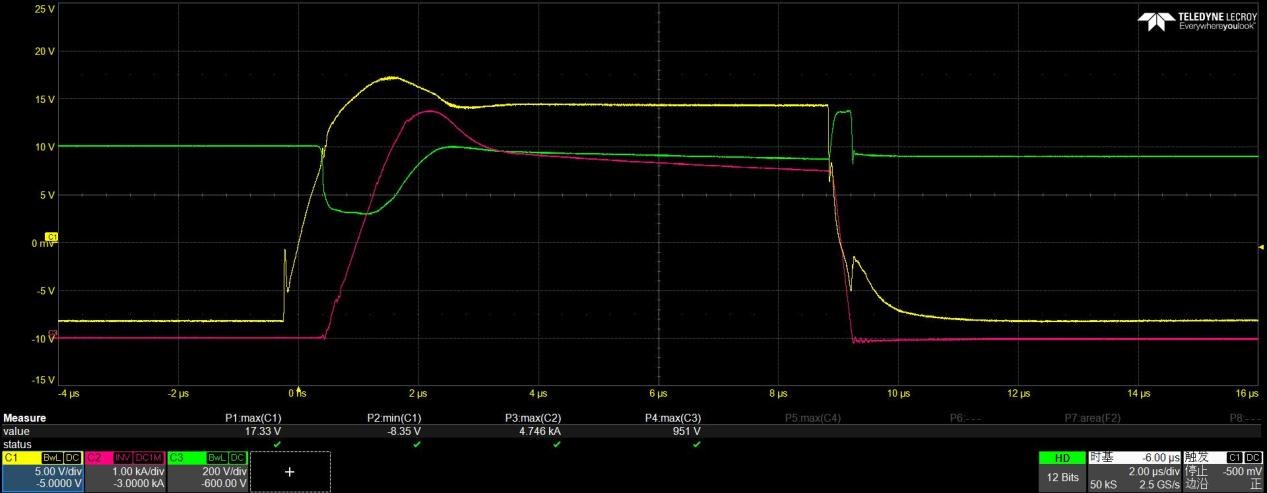

Short-circuit waveform @175℃
短路波形@175℃
Automatic packaging/自动化封装
Xiner Semiconductor Technology has a dedicated line for the production of C2 power modules, and the full process and full process production operations are equipped with advanced process automation loading and unloading system: to achieve efficient production and consistent product quality.
芯能半导体有一条专门生产C2的模块的专线，全制程、全工序生产作业配备有先进的工艺自动化上下料系统：以实现高效的生产和一致的产品质量。
※ ：For specific product information, please consult our sales personnel or request product specifications（service@invsemi.com）.
产品具体信息可向我司销售人员咨询或索取产品规格（service@invsemi.com）。
